MLLM Framework Core Architecture

Overview

The MLLM framework employs a hierarchical execution model with three main components:

  • Module: High-level abstraction for neural network modules

  • Layer: Abstraction for individual operations/layers

  • Dispatcher: Execution engine for different backends

This architecture supports both regular operation execution and intermediate representation (IR) tracing workflows, enabling flexible deployment across multiple hardware backends including CPU, QNN (also: Qualcomm AI Engine Direct/QAIRT), and custom accelerators.

Overview

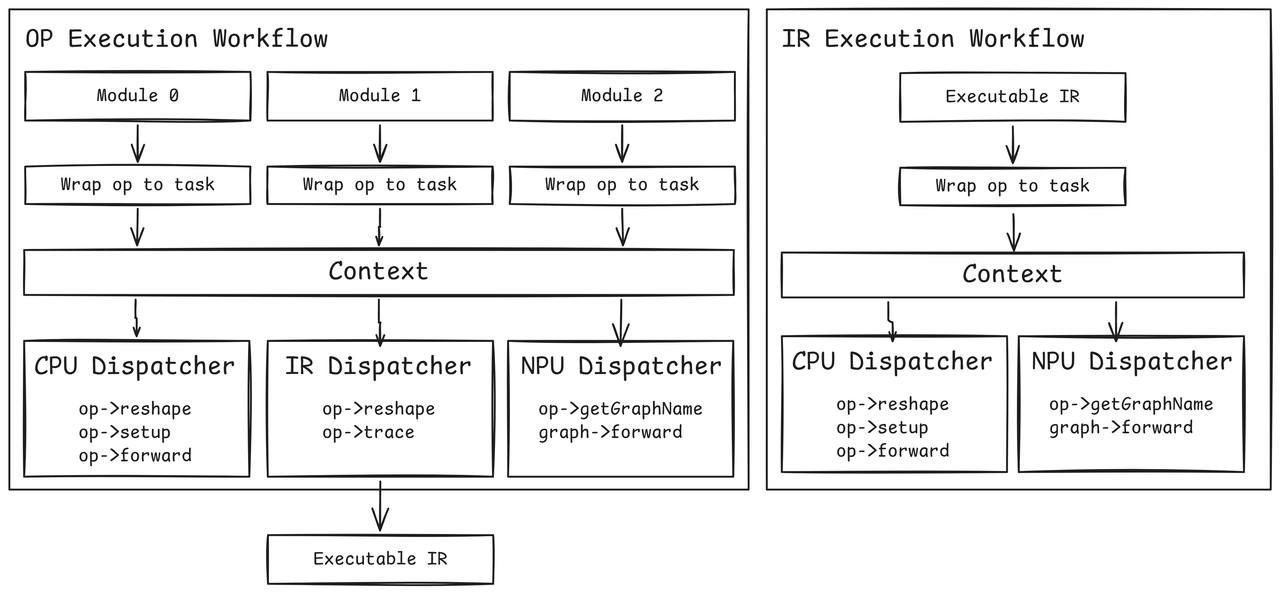

Figure 1: MLLM Framework Core Architecture.

Core Components

Module

The Module class serves as the top-level container for neural network components. Key responsibilities include:

  • Hierarchical Organization: Modules can contain other modules and layers, forming a tree structure

  • Parameter Management: Loading and saving model parameters from/to files

  • Device Management: Moving modules and their components across different devices

  • Forward Execution: Orchestrating the execution flow through child components

Key Methods:

class Module {
    std::vector<Tensor> forward(const std::vector<Tensor>& inputs,
                               const std::vector<AnyValue>& args);
    void to(DeviceTypes device_type);
    void load(const ParameterFile::ptr_t& param_file);

    // Named module registration (similar to PyTorch's named_modules)
    template<typename T, typename... Args>
    auto reg(const std::string& name, Args&&... args);
};

Named Module Registration:

The reg() method provides functionality similar to PyTorch’s named_modules(), enabling hierarchical module organization with automatic name management in C++:

class MyModel : public nn::Module {
public:
    MyModel(const std::string& name) : nn::Module(name) {
        // Register sub-modules with names
        encoder_ = reg<EncoderModule>("encoder", config);
        decoder_ = reg<DecoderModule>("decoder", config);

        // Register layers with names
        linear1_ = reg<nn::Linear>("fc1", 768, 3072, false);
        linear2_ = reg<nn::Linear>("fc2", 3072, 768, false);
    }

private:
    EncoderModule encoder_;  // Absolute name: "model.encoder"
    DecoderModule decoder_;  // Absolute name: "model.decoder"
    nn::Linear linear1_;     // Absolute name: "model.fc1"
    nn::Linear linear2_;     // Absolute name: "model.fc2"
};

Key Features:

  • Automatic Name Hierarchy: Constructs fully-qualified names (e.g., "model.encoder.layer0.attention")

  • Parameter Mapping: Links module names to parameter files for loading/saving

  • Device Management: Enables selective device placement by module name

  • Type Safety: Template-based registration with compile-time type checking

Comparison with PyTorch:

# PyTorch
class MyModel(nn.Module):
    def __init__(self):
        super().__init__()
        self.encoder = EncoderModule()  # Automatically named "encoder"
        self.decoder = DecoderModule()  # Automatically named "decoder"

# Print all named modules
for name, module in model.named_modules():
    print(f"{name}: {module}")

// MLLM Framework
class MyModel : public nn::Module {
public:
    MyModel(const std::string& name) : nn::Module(name) {
        encoder_ = reg<EncoderModule>("encoder");  // Explicitly named "encoder"
        decoder_ = reg<DecoderModule>("decoder");  // Explicitly named "decoder"
    }
};

// Names are automatically constructed: "model.encoder", "model.decoder"
// Used for parameter loading: params->load("model.encoder.weight")

The reg() method bridges the gap between Python’s dynamic attribute naming and C++’s static type system, providing a clean API for building hierarchical neural networks.

Layer Abstraction

The Layer class represents individual operations or layers within a module:

  • Operation Encapsulation: Wraps backend-specific operations (BaseOp)

  • Device Abstraction: Handles operation instantiation for different backends

  • Task Creation: Creates execution tasks for the dispatcher system

Key Methods:

class Layer {
    std::vector<Tensor> __main(const std::vector<Tensor>& inputs);
    Layer& to(DeviceTypes device_type);
    OpTypes opType() const;
};

Dispatcher System

The dispatcher system provides backend-specific execution engines:

CPUDispatcher

Handles CPU-based operation execution with full operation lifecycle:

  • reshape(): Tensor shape computation

  • setup(): Operation initialization

  • forward(): Actual computation

IRTraceDispatcher

Captures execution traces for IR generation:

  • Records operation calls and tensor flows

  • Enables graph optimization and analysis

  • Supports compilation workflows

QNNDispatcher

Manages QNN backend execution:

  • Specialized for QNN graph execution

  • Handles module-level execution for QNN graphs

  • Selective operation execution (X2X, Embedding ops)

Execution Workflows

Op Execution Workflow

The standard execution path for neural network inference:

Module::forward()
    │
    ├─── Module::__main()
    │    │
    │    ├─── Task::createExecuteModuleTask()
    │    │
    │    └─── DispatcherManager::submit()
    │         │
    │         └─── [CPU|QNN]Dispatcher::receive()
    │              │
    │              └─── [CPU|QNN]Dispatcher::process()
    │
    └─── Layer::__main()
         │
         ├─── Task::createExecuteOpTask()
         │
         └─── DispatcherManager::submit()
              │
              └─── [CPU|QNN]Dispatcher::receive()
                   │
                   └─── [CPU|QNN]Dispatcher::process()
                        │
                        ├─── Op::reshape()
                        ├─── Op::setup()
                        └─── Op::forward()

Execution Flow Details:

  1. Module Entry: Module::forward() is called with input tensors

  2. Task Creation: Creates kExecuteModule or kExecuteOp tasks

  3. Dispatcher Selection: Routes to appropriate backend dispatcher based on device type

  4. Backend Processing: Dispatcher executes the operation using backend-specific logic

  5. Result Return: Output tensors are returned through the task system

IR Execution Workflow

When trace mode is enabled, the framework captures an intermediate representation:

Module::forward() [trace_mode=true]
    │
    ├─── Module::__trace()
    │    │
    │    ├─── IRContext::create<CallGraphOp>()
    │    ├─── IRContext::create<SubGraphOp>()
    │    │
    │    ├─── Module::forward() [recursive]
    │    │
    │    └─── IRContext::create<ReturnOp>()
    │
    └─── Layer::__main() [trace_mode=true]
         │
         ├─── Task::createExecuteOpTask()
         │    └─── task->custom_context_ptr = ir_context
         │
         └─── IRTraceDispatcher::receive()
              │
              └─── IRTraceDispatcher::process()
                   │
                   ├─── Op::reshape()
                   └─── Op::trace()

IR Workflow Details:

  1. Trace Initialization: Context::thisThread()->trace_mode enables IR capture

  2. Graph Construction: Creates IR graph nodes (CallGraphOp, SubGraphOp)

  3. Operation Tracing: Each operation call is recorded in the IR graph

  4. Graph Completion: ReturnOp finalizes the subgraph structure

  5. IR Output: Complete computational graph is available for optimization/compilation

For more details on IR tracing and compilation, refer to the MLLM IR section.

Synchronous vs Asynchronous Execution

Synchronous Execution

Currently, the primary execution mode uses synchronous task processing:

// In Dispatcher::receive()
void CPUDispatcher::receive(const Task::ptr_t& task) {
    process(task);  // Blocks until completion
}

Characteristics:

  • Blocking Operation: Each task completes before returning

  • Simple Flow Control: Sequential execution guarantees

  • Immediate Results: Output tensors available immediately after task submission

Asynchronous Execution (Future Enhancement)

The framework includes infrastructure for asynchronous execution:

// In Dispatcher::asyncReceive()
TaskResult::sender_t CPUDispatcher::asyncReceive(const Task::ptr_t& task) {
    auto scheduler = thread_pool_.get_scheduler();
    return stdexec::schedule(scheduler) |
           stdexec::then([this, task] { process(task); });
}

Design Features:

  • Non-blocking Submission: Tasks return immediately with a sender/future

  • Thread Pool Integration: Uses exec::static_thread_pool for parallel execution

  • Sender/Receiver Pattern: Based on C++26 sender/receiver async model

  • Pipeline Capability: Enables operation pipelining and overlapping

Current Status:

The asynchronous execution path is implemented but not fully integrated:

  • IRTraceDispatcher::asyncReceive() returns an error

  • Most dispatchers have placeholder async implementations

  • Synchronization points (syncWait()) are not fully implemented

Task System Architecture

The task system provides a unified interface for operation execution:

Task Types:

  • kExecuteOp: Single operation execution

  • kExecuteModule: Module-level execution (for QNN graphs)

Task Structure:

struct Task {
    TaskTypes type;
    BaseOp::ptr_t op;                    // Operation to execute
    std::vector<Tensor> inputs;          // Input tensors
    std::vector<Tensor> outputs;         // Output tensors
    std::vector<AnyValue> args;          // Additional arguments
    void* custom_context_ptr;            // Backend-specific context
};

Dispatcher Interface:

class Dispatcher {
    virtual void receive(const Task::ptr_t& task) = 0;
    virtual TaskResult::sender_t asyncReceive(const Task::ptr_t& task) = 0;
    virtual void process(const Task::ptr_t& task) = 0;
    virtual void syncWait() = 0;
};

Backend Integration

The framework supports multiple execution backends through the dispatcher pattern:

CPU Backend

  • Full operation support with reshape/setup/forward lifecycle

  • Direct tensor computation on CPU

  • Perfetto tracing integration for performance analysis

QNN Backend

  • Optimized execution for Qualcomm Neural Processing Units

  • Graph-level execution for improved performance

  • Selective operation fallback to CPU when needed

IR Tracing Backend

  • Captures computational graphs for analysis and optimization

  • Enables ahead-of-time compilation workflows

  • Supports graph transformation and optimization passes

This architecture provides a flexible foundation for deploying neural networks across diverse hardware platforms while maintaining a consistent programming interface.
